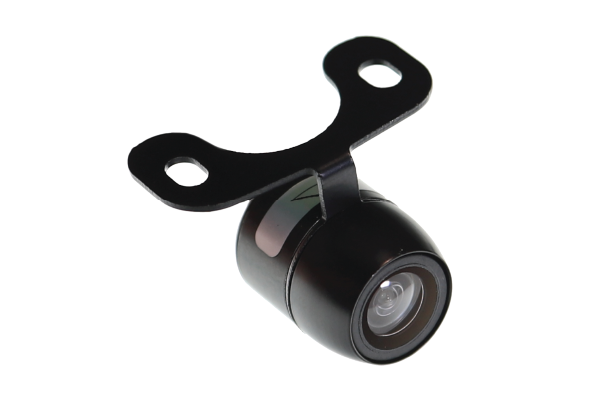

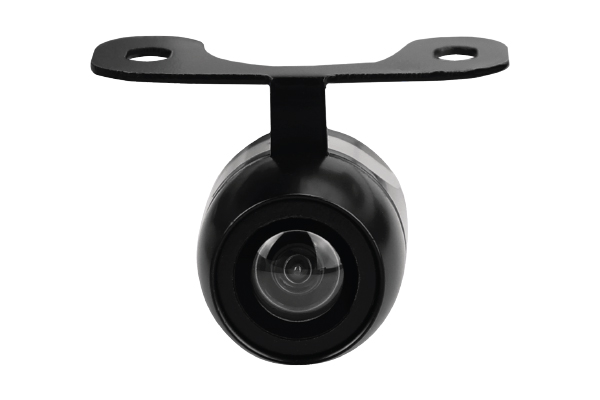

Butterfly Mount Camera with Loop System

105 Degree Lens Angle

Featuring a 105-degree wide-angle camera lens, this system reduces blind spots at the rear of the vehicle, offering expansive coverage for improved visibility.

Parking Guidelines

Reverse the vehicle with ease even in tight parking spots with the use of the parking gridlines that automatically switches on when shifted to reverse gear.

IP67 Dust & Weatherproof

The IP67-rated camera withstands harsh conditions on the vehicle exterior, ensuring reliable performance in dust, dirt, and rain.

Features and Benefits:

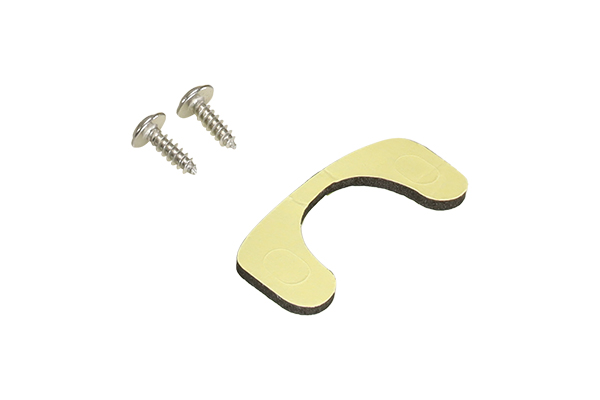

Surface mount design for simple installation on the front or rear of the vehicle
Can be used as a front view, rear view or reverse camera thanks to the loop feature
Equipped with optional parking grid-lines that help you reverse the vehicle with ease even in tight parking spots
105 degree super wide angle lens for reduced rear view blind-spots
Aluminium case and rated IP67 that guarantee the camera will withstand impact of water and debris normally hounding the vehicle’s exterior
Camera is PAL/NTSC switchable, making it compatible with all display monitors and aftermarket AV headunits with RCA input
Low lux image sensor for use in low light environments

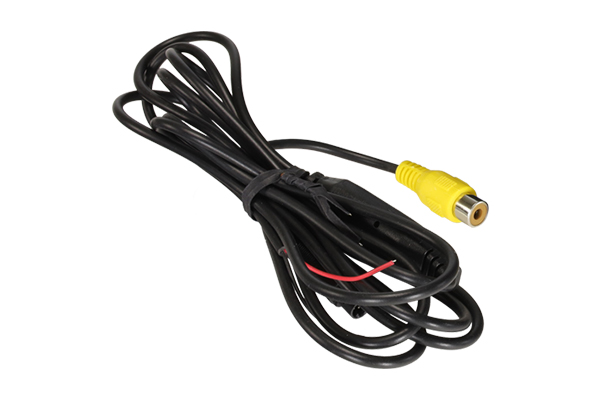

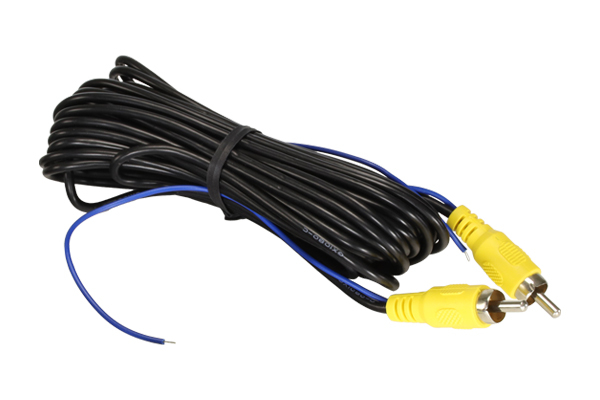

Includes 1.5-metre power wire and 6-metre RCA lead
Loop system for adjustable settings during installation

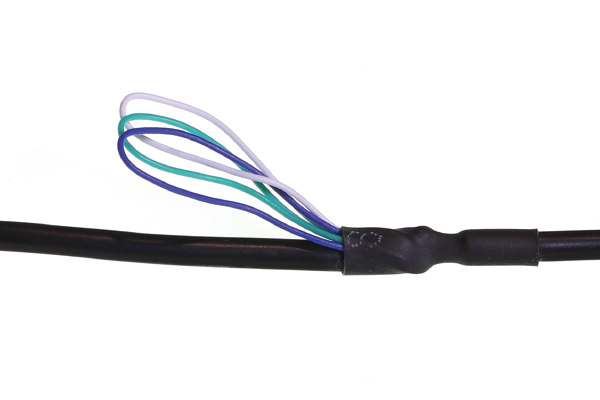

Loop Setting Adjustments:

BLUE – default setting PAL, cut the loop for NTSC
GREEN – default setting PARKING LINES, cut the loop to remove PARKING LINES
WHITE – default setting MIRROR IMAGE, cut the loop for FORWARD FACING IMAGE

XVBFC1 is PAL/NTSC switchable and comes with a standard RCA cable, making it compatible to any monitor or in- dash AV headunit with RCA input. It’s supplied with a 1.5-metre power wire and a 6-metre video RCA.

SPECIFICATIONS

Application	Front, Rear or Reverse Camera
Mount Type	Universal Butterfly Surface Mount
Lens Angle	105° Horizontal Lens Angle
Image Sensor	CMOS
Parking Guidelines	Yes (Loop Setting Optional)
Mirror Image	Yes (Loop Setting Optional)
PAL / NTSC System	Yes (Loop Setting Optional)
Input Voltage	DC 12V Compatible
IP Rating	IP67 Waterproof / Dustproof
