7″ Multimedia Receiver with Wired Apple CarPlay & Android Auto – XVCPA700

7” DIGITAL HEAD UNIT SHALLOW DOUBLE DIN

The Xview XVCPA700 is a feature-packed 7″ Digital Head Unit designed with a shallow-mount double DIN chassis, making it perfect for tight dashboard installations. Its crisp 1024×600 capacitive touch display offers clear visuals and smooth navigation, whether you’re browsing media or using apps on the go.

  • 7″ Capacitive touch display (1024×600 resolution)
  • Compatible with Apple CarPlay & Android Auto (Wired)
  • Built-in Bluetooth (A2DP, AVRCP, HFP, PBAP)
  • AM / FM Tuner with RDS & presets (18FM/12AM)
  • Rear USB, Reverse Camera and Rear A/V (RCA) inputs

WHERE TO BUY

OVERVIEW

Stay connected with wired Apple CarPlay and Android Auto, built-in Bluetooth, and a rear USB input with 1.5A charging. The XVCPA700 also includes an external microphone for clear calls and supports a wide range of media formats including MP3, AAC, FLAC, and Xvid. You’ll also get access to AM/FM radio with RDS and 30 presets. Audio lovers will appreciate the 50W x 4 max amplifier, 4V/5CH RCA preouts, subwoofer control, and an 8-band graphic EQ with multiple presets for tailored sound. The unit supports a 720P AHD reverse camera input, rear A/V input, and composite video output for added versatility. With support for steering wheel controls (3-wire learning), red LED backlighting, and a user-friendly Linux interface, the XVCPA700 blends smart functionality with sleek design ideal for any modern vehicle upgrade.

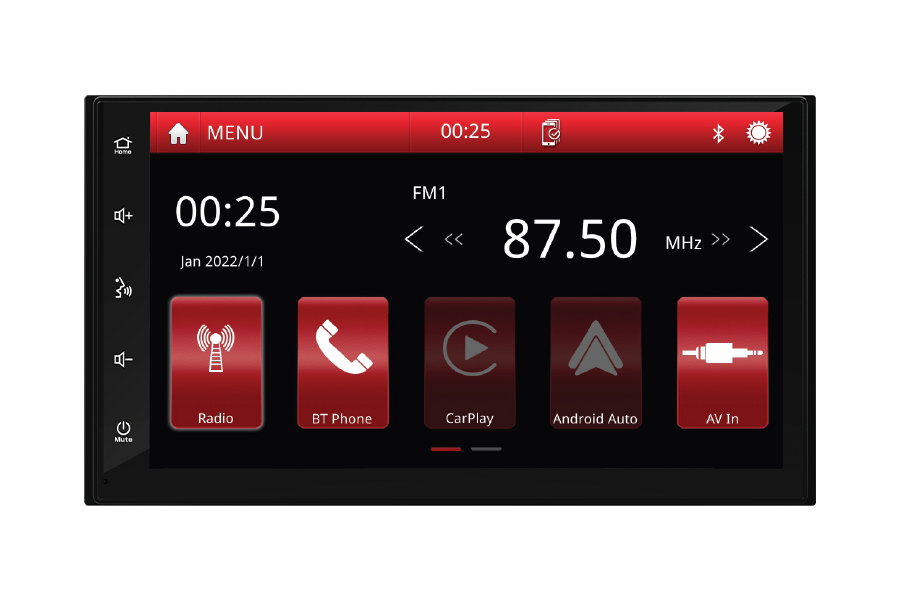

STUNNING 7″ CAPACITIVE TOUCH DISPLAY

Enjoy sharp visuals and smooth control with the large 7″ capacitive touch display—sleek, responsive, and built for a modern driving experience.

back to top

STUNNING 7″ CAPACITIVE TOUCH DISPLAY

Enjoy sharp visuals and smooth control with the large 7″ capacitive touch display—sleek, responsive, and built for a modern driving experience.

back to top

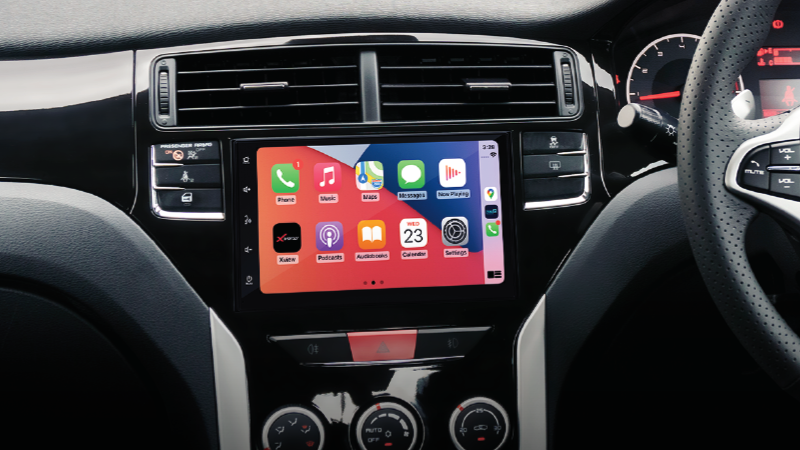

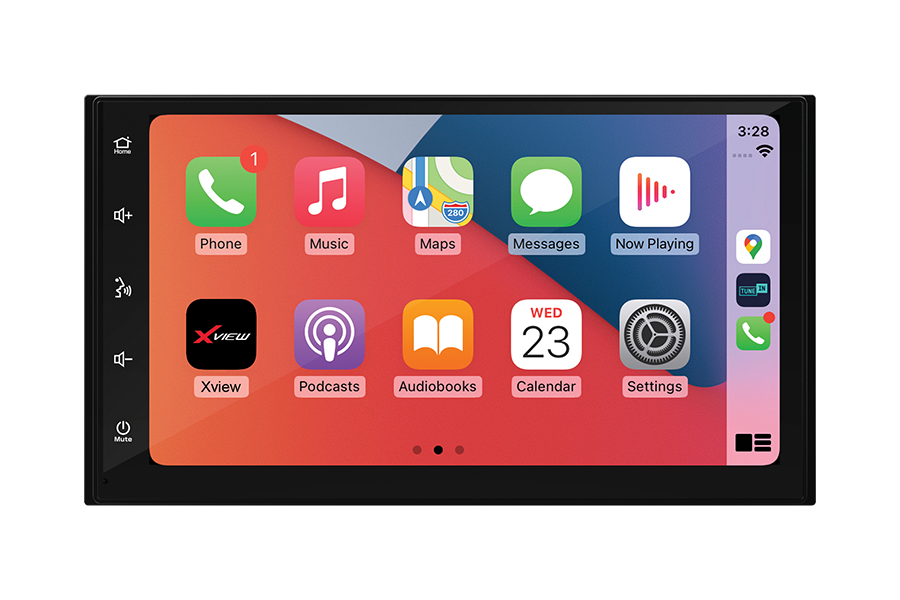

APPLE CARPLAY COMPATIBLE (WIRED)

Stay connected and entertained with seamless wired integration for Apple CarPlay. Access your phone’s features through the interface for a safe and enjoyable drive.

back to top

APPLE CARPLAY COMPATIBLE (WIRED)

Stay connected and entertained with seamless wired integration for Apple CarPlay. Access your phone’s features through the interface for a safe and enjoyable drive.

back to top

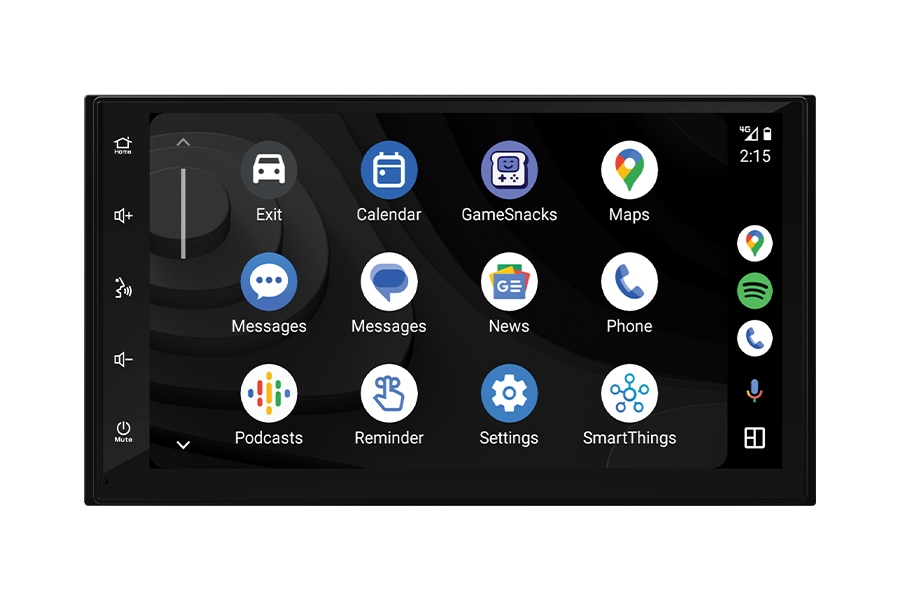

ANDROID AUTO COMPATIBLE (WIRED)

Stay connected and entertained with seamless wired integration for Android Auto. Access your phone’s features through the interface for a safe and enjoyable drive.

back to top

ANDROID AUTO COMPATIBLE (WIRED)

Stay connected and entertained with seamless wired integration for Android Auto. Access your phone’s features through the interface for a safe and enjoyable drive.

back to top

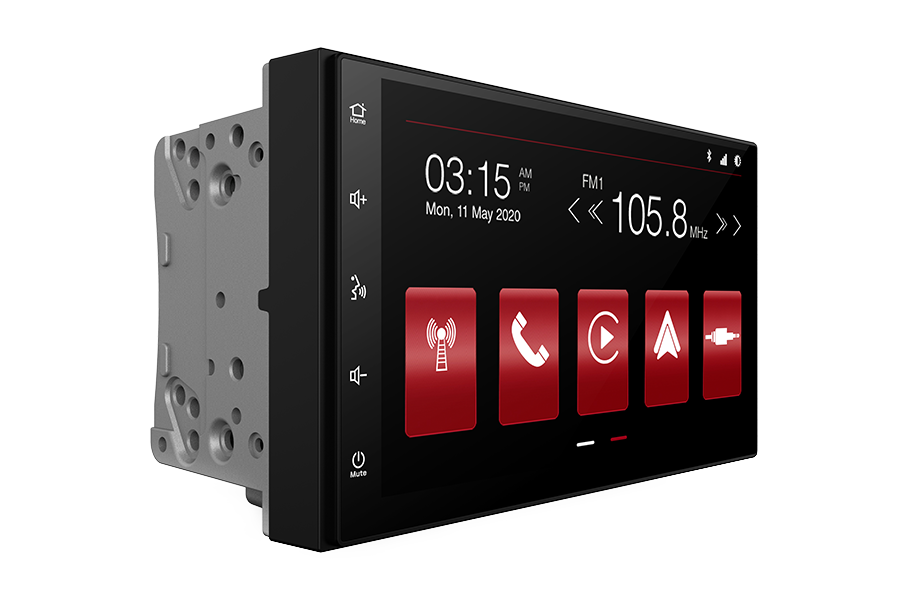

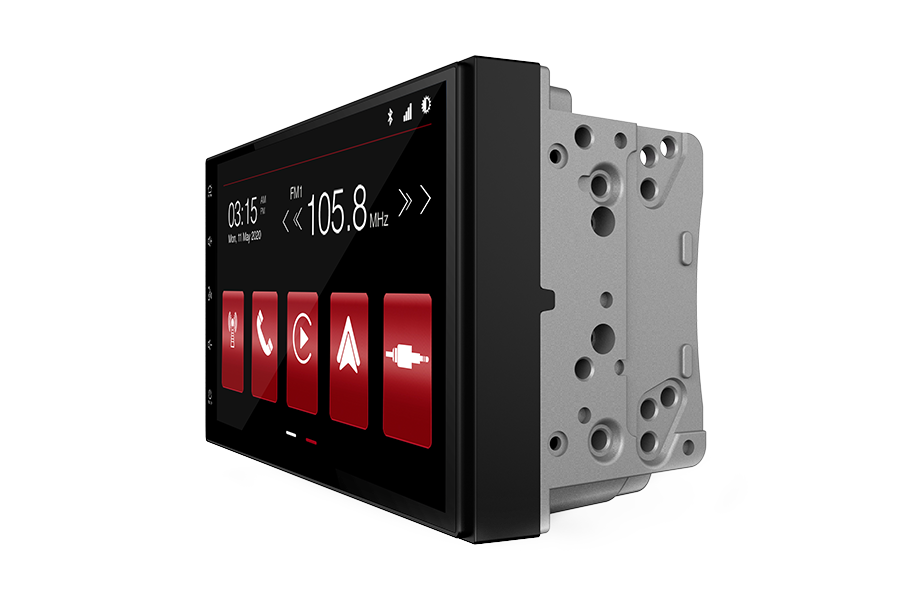

SHALLOW 2-DIN CHASSIS MOUNTING DESIGN

This compact and space-saving design is ideal for vehicles with limited rear clearance and simplifies wiring and integration without sacrificing functionality or performance.

back to top

SHALLOW 2-DIN CHASSIS MOUNTING DESIGN

This compact and space-saving design is ideal for vehicles with limited rear clearance and simplifies wiring and integration without sacrificing functionality or performance.

back to top

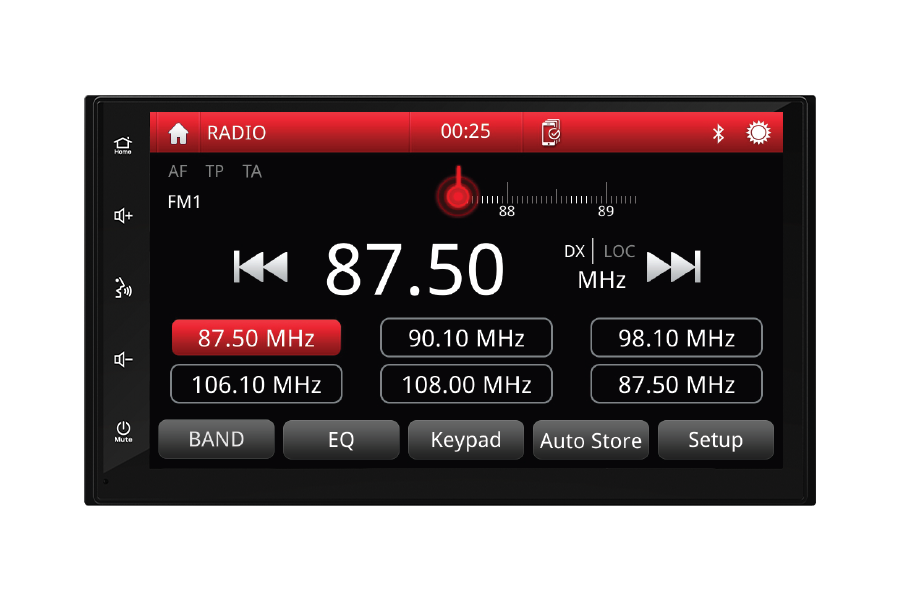

AM / FM TUNER WITH RDS AND PRESETS

Easily access your favourite stations with crystal-clear sound and real-time station info, so you can stay informed and entertained on every drive without constant re-tuning.

back to top

AM / FM TUNER WITH RDS AND PRESETS

Easily access your favourite stations with crystal-clear sound and real-time station info, so you can stay informed and entertained on every drive without constant re-tuning.

back to top

AUX OUTPUT

Seamlessly connect and indulge in superior audio playback through your vehicle’s AUX input. Enjoy the convenience of a direct, wired connection that delivers impeccable sound quality, transforming your car into a personalised entertainment hub.

back to top

AUX OUTPUT

Seamlessly connect and indulge in superior audio playback through your vehicle’s AUX input. Enjoy the convenience of a direct, wired connection that delivers impeccable sound quality, transforming your car into a personalised entertainment hub.

back to top

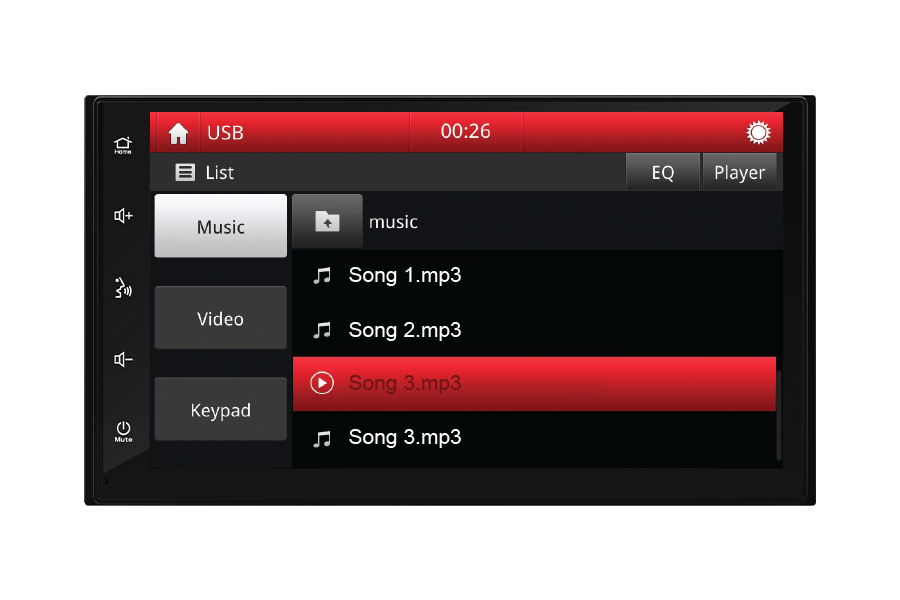

REAR USB INPUT

The rear USB input offers a clean, hidden connection for media playback and charging—keeping your dashboard neat and devices powered.

back to top

REAR USB INPUT

The rear USB input offers a clean, hidden connection for media playback and charging—keeping your dashboard neat and devices powered.

back to top

REVERSE CAMERA INPUT

The reverse camera input provides seamless integration for a backup camera, enhancing safety with clear rear visibility when reversing.

back to top

REVERSE CAMERA INPUT

The reverse camera input provides seamless integration for a backup camera, enhancing safety with clear rear visibility when reversing.

back to top

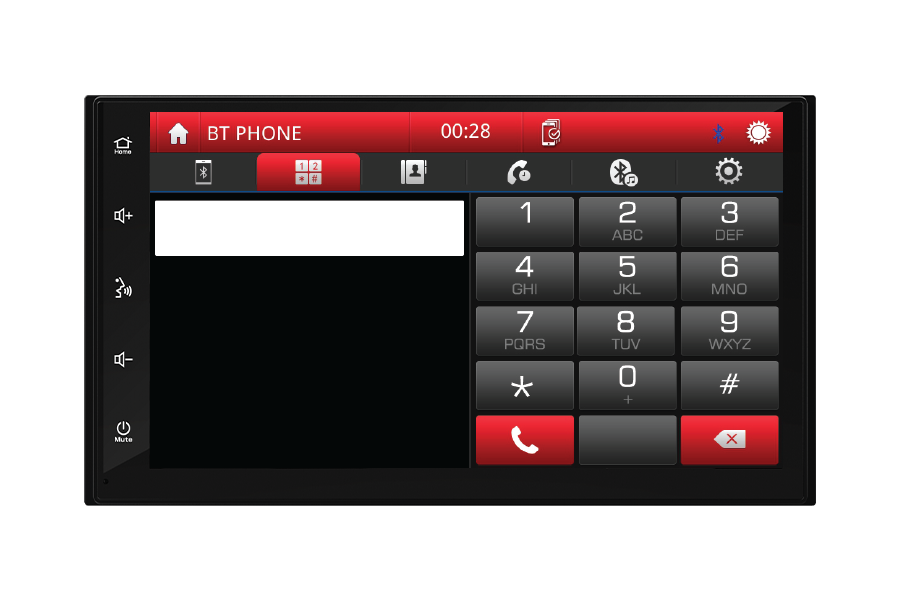

HANDS-FREE CALLING

Make and receive calls while keeping your hands on the wheel with the built-in speaker and microphone via Bluetooth. Stay connected while prioritising safety.

back to top

HANDS-FREE CALLING

Make and receive calls while keeping your hands on the wheel with the built-in speaker and microphone via Bluetooth. Stay connected while prioritising safety.

back to top

1.5A USB FAST CHARGE

The 1.5A USB fast charge port in your car keeps your devices powered up on the go, offering faster charging for smartphones, tablets, and more—so you’re always ready, wherever the road takes you.

back to top

1.5A USB FAST CHARGE

The 1.5A USB fast charge port in your car keeps your devices powered up on the go, offering faster charging for smartphones, tablets, and more—so you’re always ready, wherever the road takes you.

back to top

4X 50W MAX POWER

The 4x50W max power output delivers dynamic, high-quality sound to all corners of your car, ensuring a powerful and immersive audio experience every drive.

back to top

4X 50W MAX POWER

The 4x50W max power output delivers dynamic, high-quality sound to all corners of your car, ensuring a powerful and immersive audio experience every drive.

back to top

5CH RCA Preout

The 5-channel pre-out gives you full flexibility to expand your sound system, allowing easy connection to external amplifiers and subwoofers for richer, more powerful audio.

back to top

5CH RCA Preout

The 5-channel pre-out gives you full flexibility to expand your sound system, allowing easy connection to external amplifiers and subwoofers for richer, more powerful audio.

back to top

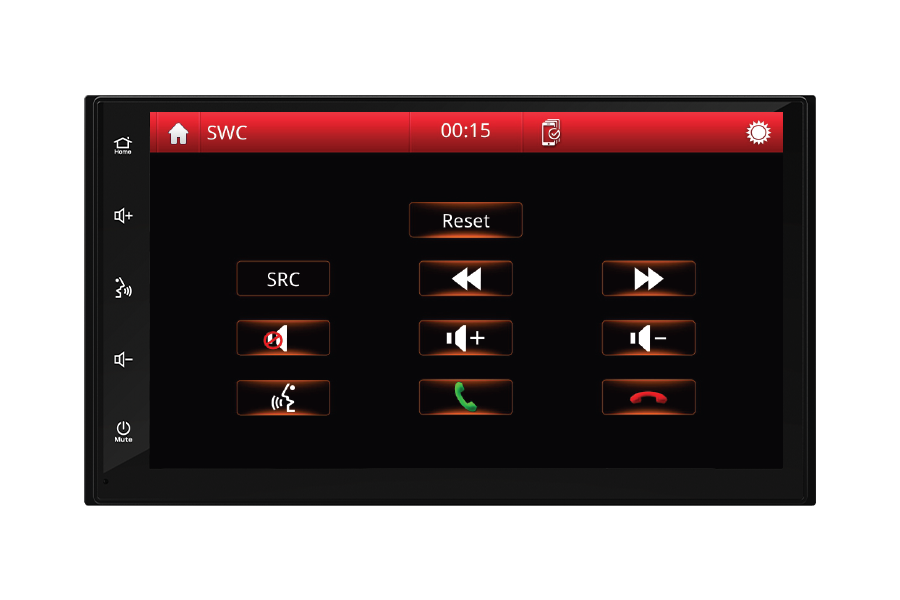

SWC READY

Steering wheel control ready, this head unit lets you manage audio and calls without taking your hands off the wheel—safer, smarter driving at your fingertips.

back to top

SWC READY

Steering wheel control ready, this head unit lets you manage audio and calls without taking your hands off the wheel—safer, smarter driving at your fingertips.

back to top

SPECIFICATIONS

Display LCD 7″ 1024*600 Resolution
Touch Screen Capacitive P+G
System Specification OS System/CPU: Linux 3.4.5 / SPHE8368U

RAM / Flash Memory: 128MB / 256MB
DIN Size 2DIN short body
Power Output Rated Power: 4CH x 25W
MAX Power: 4CH x 50W
Media Playback MP3 / MP4 / AAC / FLAC / Xvid
Device Ports (Rear) USB1 5V / 1.5A: CP/AA/USB Media
USB MAX Capability: FAT32_32GB
Aux Inputs / Outputs Rear A/V Input (RCA Type – 3pcs)
Composite Video Output
Reverse Camera Inputs (720P AHD Compatible)
Smartphone Connectivity CarPlay & Android Auto (Wired)
Bluetooth Bluetooth Built-In (A2DP, AVRCP, HFP, PBAP)
Bluetooth V4.2+EDR
External Microphone
ID3 Tag/Information (Artist, Album, Song)
HFP 1.6
Tuners AM 12 (6X2) / FM 18 (6X3)
FM Frequency Span 87.5-108.0MHz (0.05MHz Step)
AM Frequency Span 531-1629KHz (9KHz Step)
RDS
FM Antenna Connector Impedance: 75 Ohm
FM Tuner Connector: DIN
RCA Preamp Outputs 2-Pair RCA Preamp Output
Subwoofer RCA Output/Level Control
Preamp Voltage 4V p-p

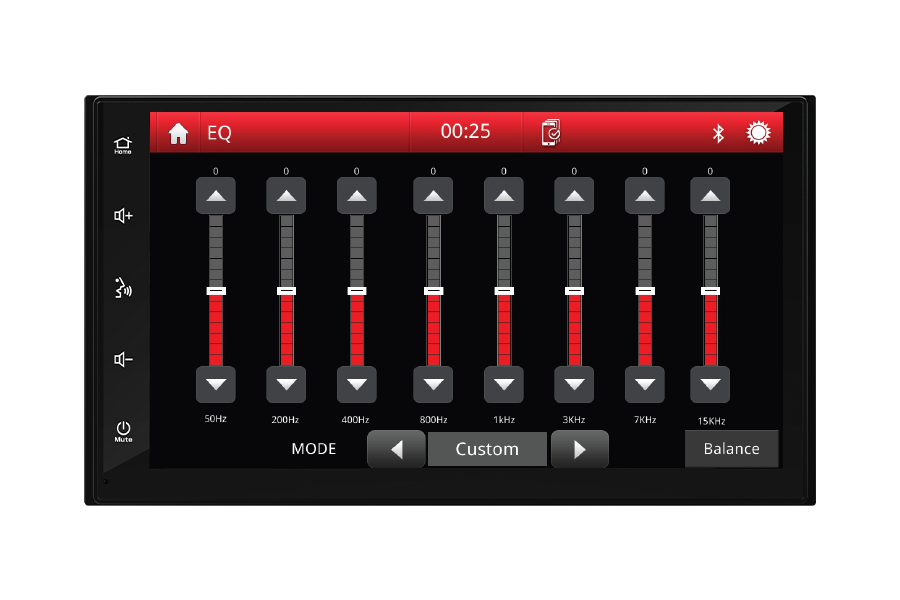

Tone Control 8 Band (50/200/400/800/1K/3K/7K/15K)
Loudness
LPF – Frequencies (Sub)
8 Preset EQs
Other Features Steering Wheel Control: 3 Wire Learning SWC
LED Light Colour (when illuminated): Red
Accessories Power Harness (with ISO)
AV-In Cable (RCA with Audio L/R, Video In)
Reverse Camera Input
4.1CH Audio Out Cable
External Microphone

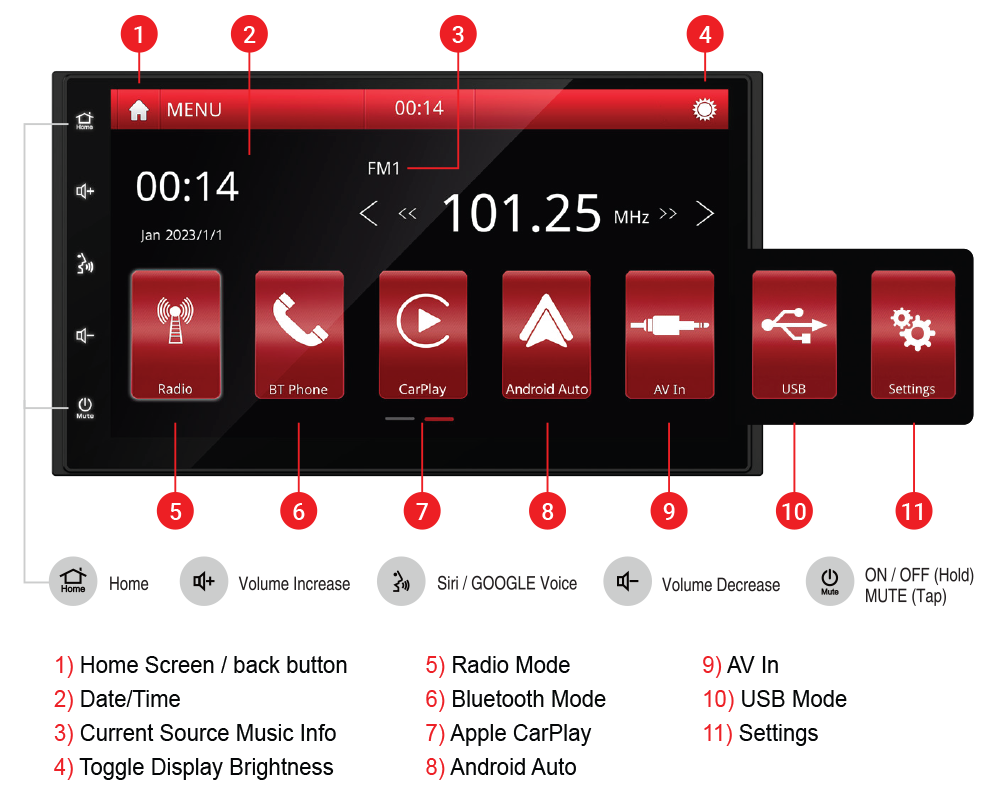

DIAGRAM

INCLUSIONS

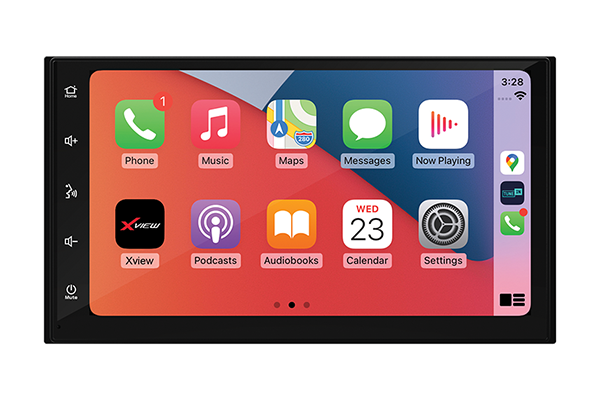

7″ Touchscreen Display

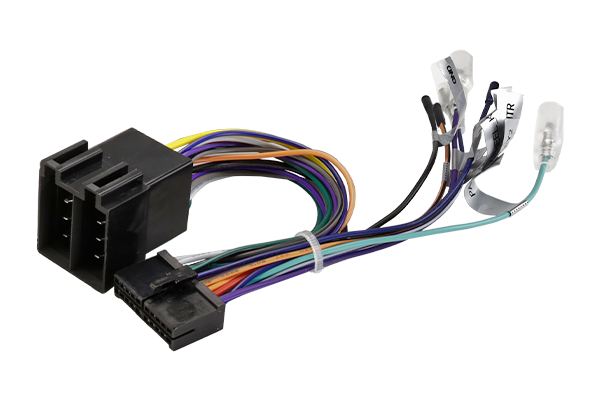

ISO Power Harness

rear-camera-cable

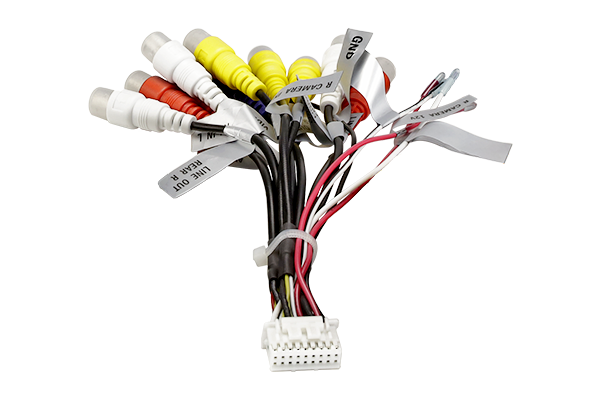

Audio-Video Lead

rear-camera-cable

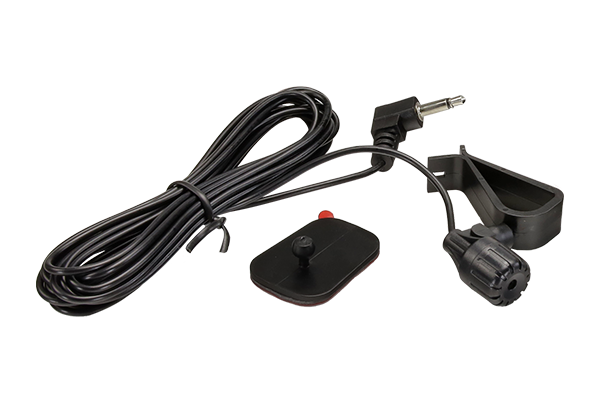

External Microphone

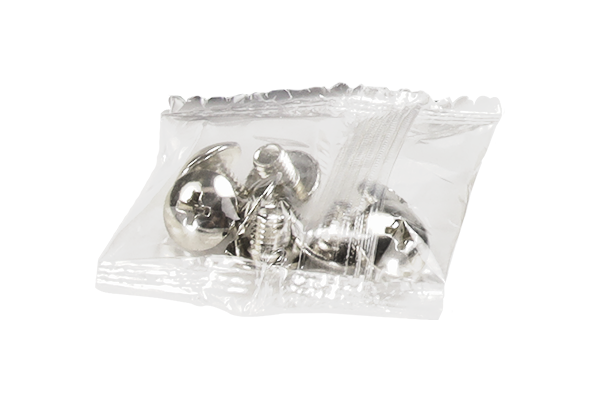

Mounting Hardware

Manual

DOWNLOADS

Manual Downloads:

XVCPA700 MANUAL

FAQ

My Mobile phone will not connect to the head unit2025-06-03T11:38:05+10:00

  • If you are having trouble connecting your phone to the head unit, try restarting your phone and try again.
  • It is also recommended to do a factory reset on the head unit as this will solve most of the connection issues between your phone and your head unit.
  • If you are having issues with connecting Android Auto or Apple CarPlay over a USB connection, try using another high quality/shorter length cable. Using low quality cables and longer lengths may cause issues such as drop outs and or connection issues.
  • Make sure your phone is up to date with the latest software updates.
Red Blinking Power Light on the Head Unit2025-06-03T11:36:48+10:00

  • This can mean the head unit doesn’t have enough power to power on the unit or there is a wiring issue.
Android Auto/Apple CarPlay won’t work unless Park Brake is active but the kit didn’t have a Park Brake connection2025-06-03T11:35:53+10:00

  • You may have to manually make a connection between your hand brake and the harness on the headunit for these functions to work.
Issue with microphone on handsfree calls2025-06-03T11:34:56+10:00

  • Try increase or decreasing the gain in the settings menu (see p.8)
  • Ensure that the microphone is connected to the back of the headunit.
  • Make sure to use the external microphone provided with this product as other external microphones may be incompatible.
