GPS Heads Up Display – XVHUD1

GPS HEADS UP DISPLAY

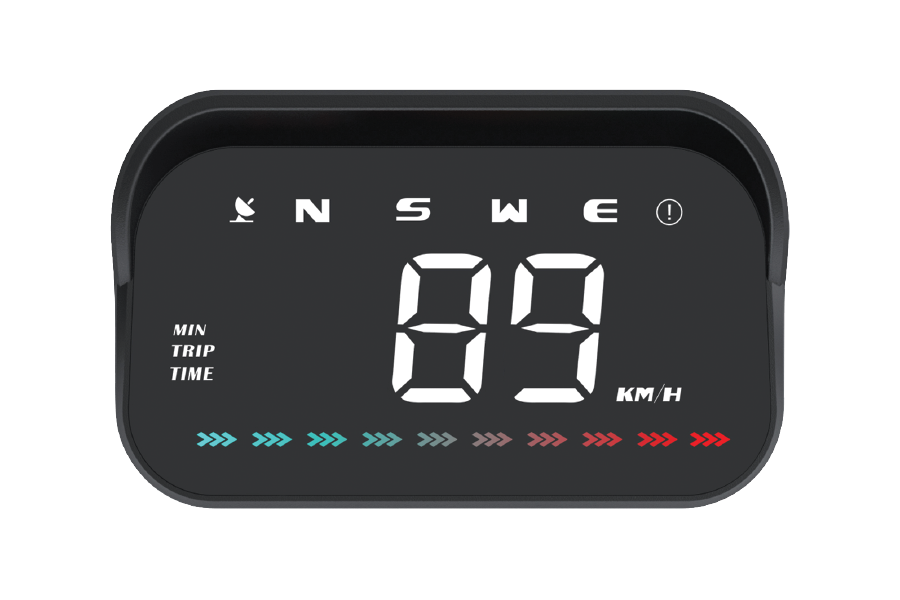

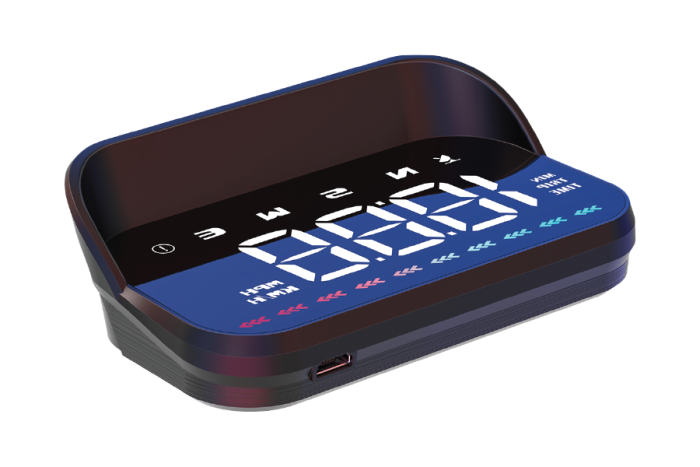

The Xview XVHUD1 is a GPS-powered Heads Up Display (HUD) that projects your vehicle’s speed onto the windscreen, providing a safer and more convenient viewing angle than the factory dash. With an easy Plug & Play setup, it suits most 12V vehicles and installs in minutes.


  • Speed Display
  • Auto Brightness
  • Reflective Film
  • Overspeed Alarm

WHERE TO BUY

OVERVIEW

The unit uses GPS to show real-time speed, driving direction, travel time, and distance – no connection to the car’s OBD port required. It includes a drive time clock, overspeed alerts, and automatic brightness adjustment for day or night driving. Speed can be displayed in KM/H or MPH, with fine-tuning available for accuracy. The XVHUD1 also comes with a reflective film, anti-slip mat and USB power cable (5V charger not included). Compact and user-friendly, the XVHUD1 is a smart upgrade for any driver who wants better visibility, added safety, and a cleaner dash layout – all without modifying the vehicle’s original setup.

SPEED DISPLAY

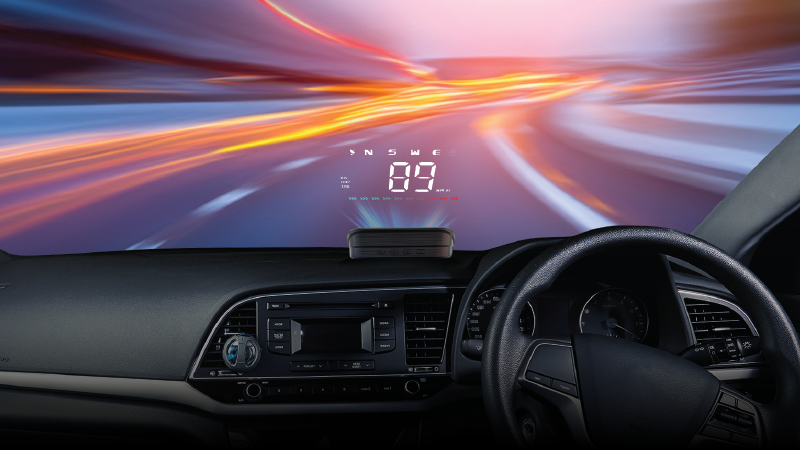

Projects speed onto your windscreen for a safer, more natural viewing position, reducing the need to glance down. Displays vehicle speed clearly in KM/H or MP/H for improved driving awareness.

back to top

SPEED DISPLAY

Projects speed onto your windscreen for a safer, more natural viewing position, reducing the need to glance down. Displays vehicle speed clearly in KM/H or MP/H for improved driving awareness.

back to top

AUTO BRIGHTNESS

Auto-adjusting brightness ensures clear visibility in all lighting conditions, automatically adapting to day or night for optimal screen readability and safer driving.

back to top

AUTO BRIGHTNESS

Auto-adjusting brightness ensures clear visibility in all lighting conditions, automatically adapting to day or night for optimal screen readability and safer driving.

back to top

REFLECTIVE FILM

Reflective film included to ensure clear and enhanced display visibility on the vehicle’s windscreen, even in bright sunlight or challenging lighting conditions.

back to top

REFLECTIVE FILM

Reflective film included to ensure clear and enhanced display visibility on the vehicle’s windscreen, even in bright sunlight or challenging lighting conditions.

back to top

OVERSPEED ALARM

Customisable overspeed alerts (visual & audio) help you avoid fines and encourage safe driving by providing timely warnings tailored to your preferences for added peace of mind on the road.

back to top

OVERSPEED ALARM

Customisable overspeed alerts (visual & audio) help you avoid fines and encourage safe driving by providing timely warnings tailored to your preferences for added peace of mind on the road.

back to top

COMPASS DIRECTION

Shows vehicle travel direction (N, S, E, W) with clear, easy-to-read indicators, helping you stay oriented and confident on every journey.

back to top

COMPASS DIRECTION

Shows vehicle travel direction (N, S, E, W) with clear, easy-to-read indicators, helping you stay oriented and confident on every journey.

back to top

GPS SIGNAL

GPS-powered display shows speed, direction, trip time, and distance with precise accuracy—no OBD connection needed for easy, hassle-free installation and reliable performance.

back to top

GPS SIGNAL

GPS-powered display shows speed, direction, trip time, and distance with precise accuracy—no OBD connection needed for easy, hassle-free installation and reliable performance.

back to top

SPECIFICATIONS

Speed range 0-999KM
Compass precision ±1°
USB interface Micro USB
Dimensions 90x58x30mm
Power source 5V DC
HUD weight 55g
Output 1000 mA
Light sensor Auto brightness Adjust
Built in speaker Alerts

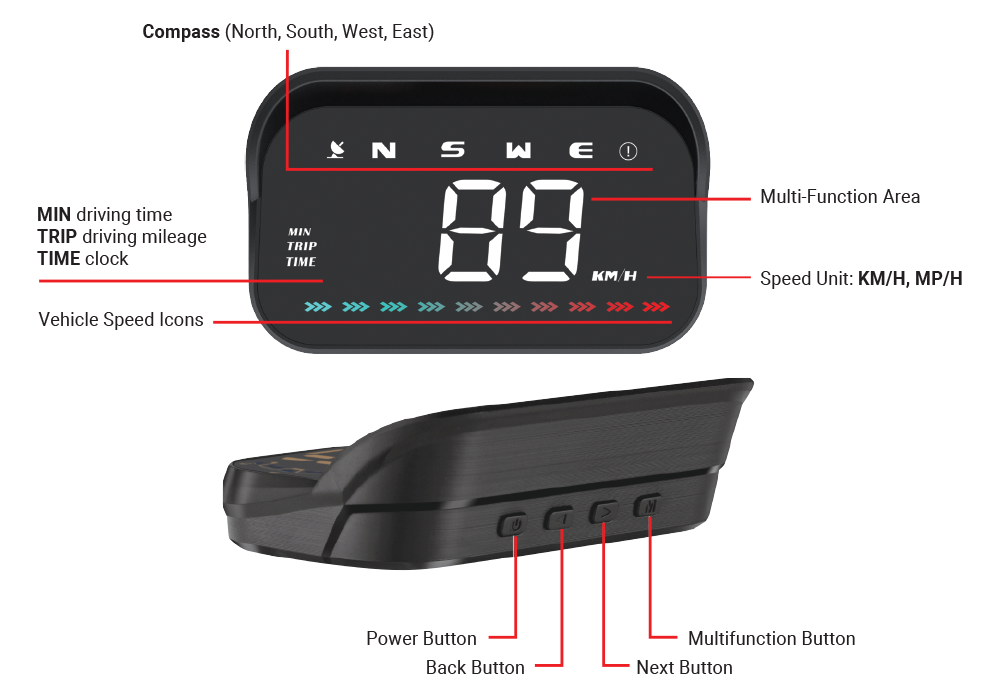

DIAGRAM

INCLUSIONS

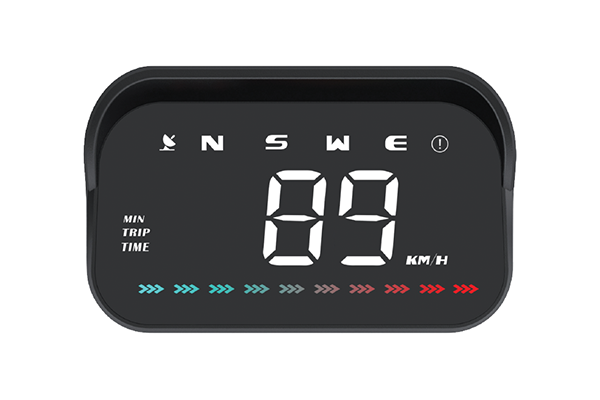

GPS Heads Up Display

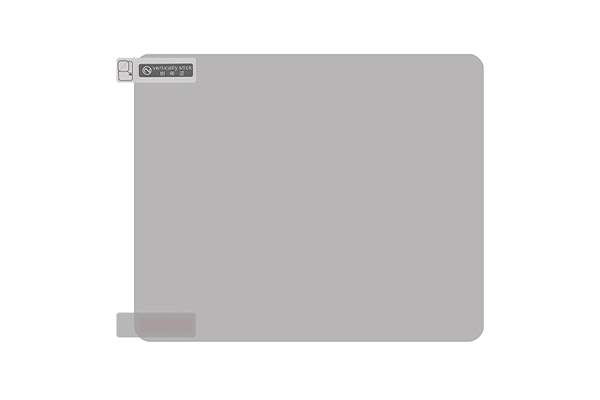

Reflective Film

rear-camera-cable

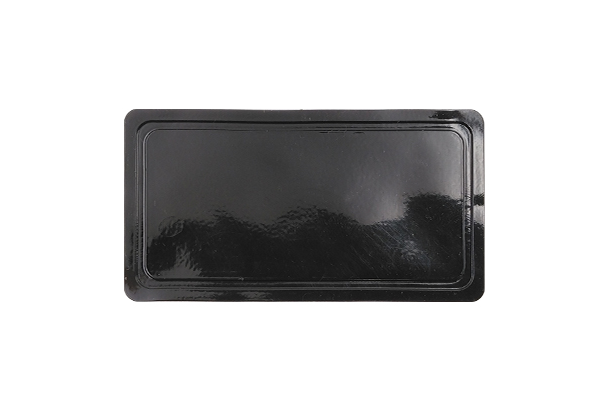

Anti-slip Mat

rear-camera-cable

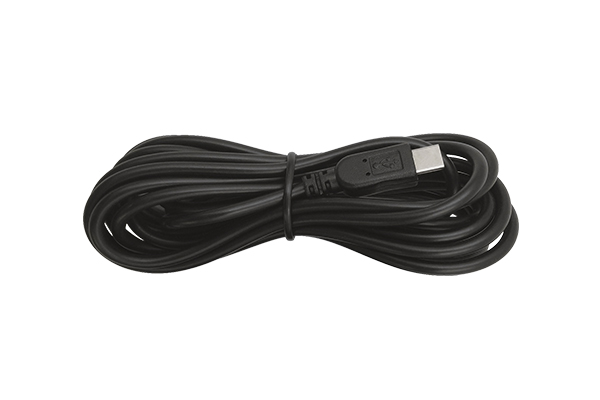

USB Power Cable

Manual

DOWNLOADS

Manual Downloads:

XVHUD1 MANUAL

FAQ

No display on the screen, no power2025-05-30T13:10:32+10:00
  • Please check whether the USB cable is connected to the 5V charger, is damaged, or try another USB cable to test.
    (NOTE: You cannot use a voltage higher than 5V for power supply as it will cause damage to your HUD).
No speed display2025-05-30T13:08:46+10:00
  • Once the product is powered on, the satellite icon flashes to indicate that it is in the satellite search state. Please move the car to an open road to receive the signal. After the satellite icon stops flashing and the number of satellites is displayed, the machine can be used normally.
The speed is still displayed after the car stops2025-05-30T13:09:07+10:00
  • When driving to places where the signal is unstable such as underground parking , tunnels, and over bridges, the data displayed by the product may lag, and will return when the vehicle is driving on an open road.
Inaccurate speed2025-05-30T13:06:41+10:00
  • Check whether the unit is correct, kilometers KM/H or miles MPH (for speed fine tuning, please refer to the setting mode menu option 1)
  • The vehicle speed can be fine-tuned. For example, the instrument panel displays 100KM/H, and the machine displays 105Km/H. The parameter value can be adjusted to 102.
Time calibration: (Manually)2025-05-30T13:05:36+10:00
  • The machine defaults to Australian time UTC+10:00
  • If you need to adjust the time in other time zones, please enter menu option 6 of the setting menu, and adjust the time by pressing the arrow keys left or right. The adjustment range is 30 minutes/time for example, If a region is 1 hour ahead of Australian time UTC+10:00, press the ‘Next’ arrow button twice). Note: The satellite icon flashes to indicate that no satellite is found, and the time is displayed as the time zone. Please adjust it to the time zone of your country or state (eg: South Korea +9:00). After the satellite icon stops flashing, just calibrate the displayed time.
Wrong driving direction2025-05-30T13:09:30+10:00
  • When there is no vehicle speed, the satellite cannot distinguish the driving direction of the vehicle, and it can only be displayed normally after the driving speed exceeds 5KM/H.
